Mounded Tank Installation

Get a Price/Quote

Mounded Tank Installation Specification

Outlet Size
2 to 10 (customizable)

Product Type
Mounded Tank Installation

Flow Rate
Up to 5000 Nm³/hr depending on usage

Usage & Applications
Safe storage of liquefied gases, industrial distribution, bottling plants, oil & gas industry, refineries

Material
Mild Steel / Carbon Steel

Technics
Welded and Fabricated

Pressure Range
10 to 18 Bar (Standard), up to 24 Bar upon request

Gas Type
LPG, Propane, Butane, Ammonia & Other Liquefied Gases

Features
Corrosion-resistant, underground installation, enhanced safety, pressure tested, leak detection system, minimal maintenance

Metal Type
Steel

Application
LPG Storage, Propane Storage, Ammonia Storage

Size
Standard & Custom Sizes (up to 500 KL or as per customer requirement)

Weight
Varies as per capacity and dimensions (typically several tonnes)

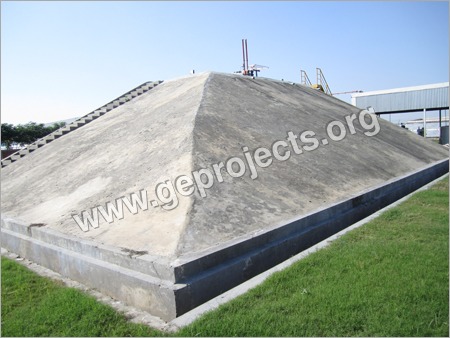

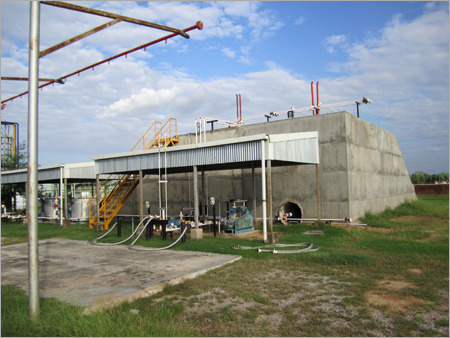

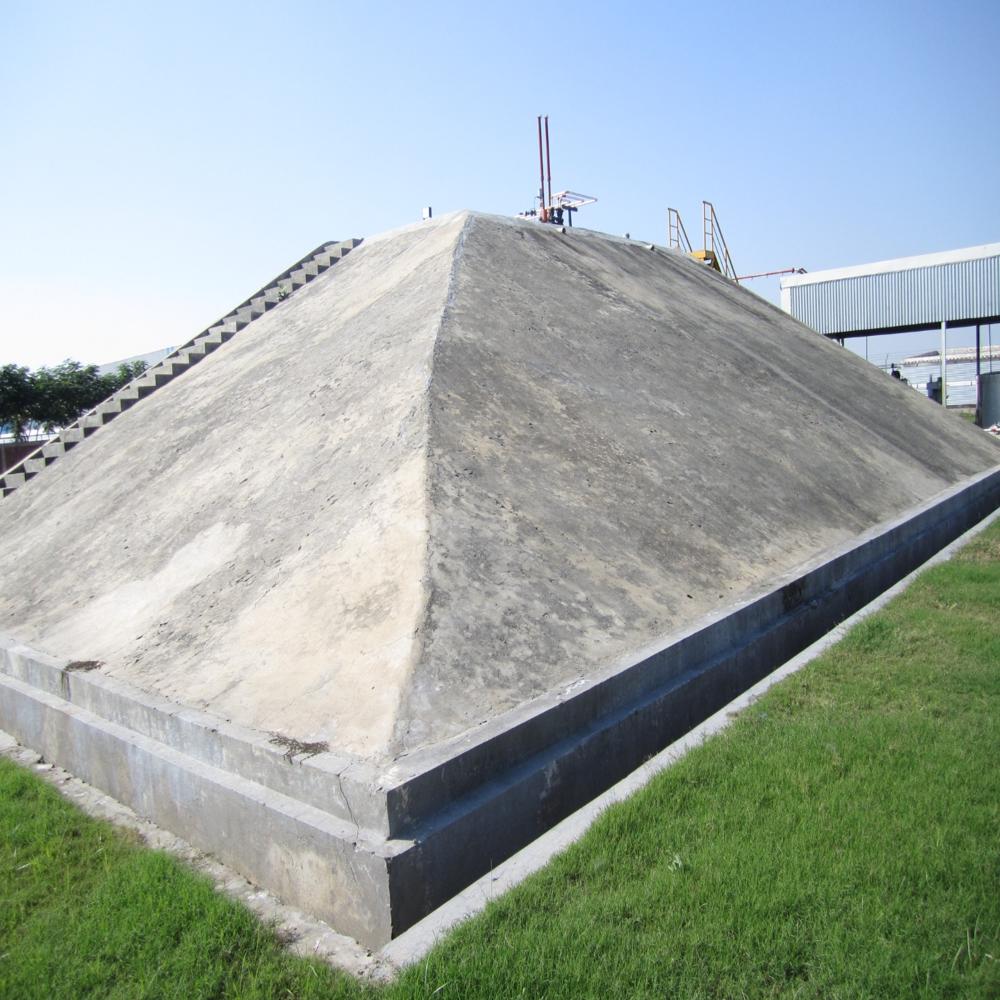

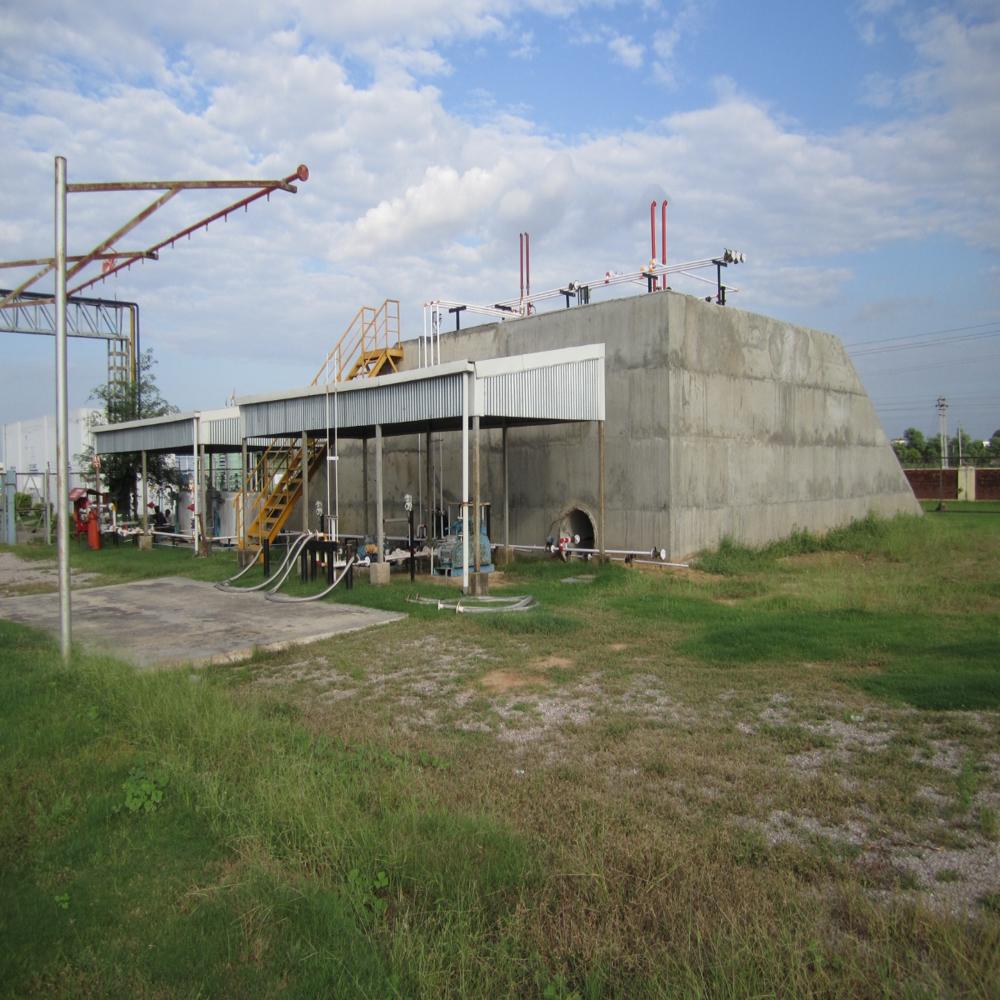

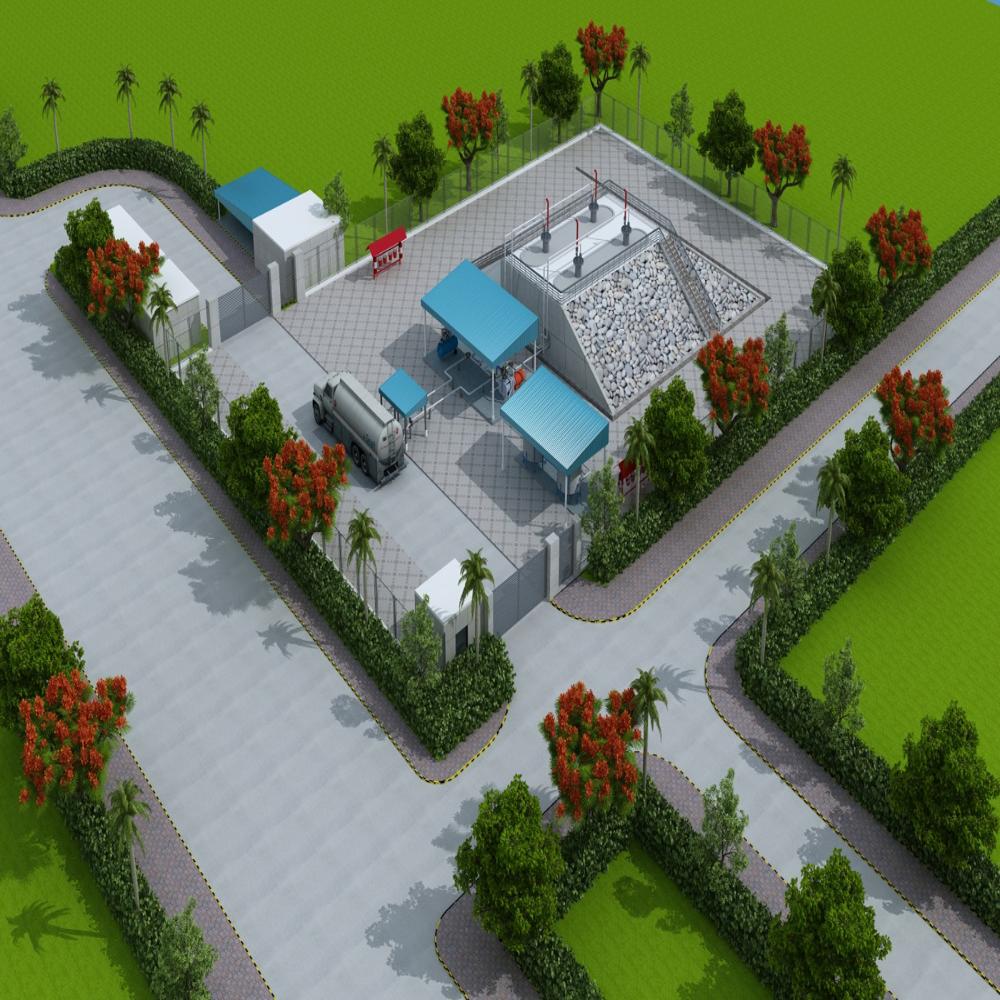

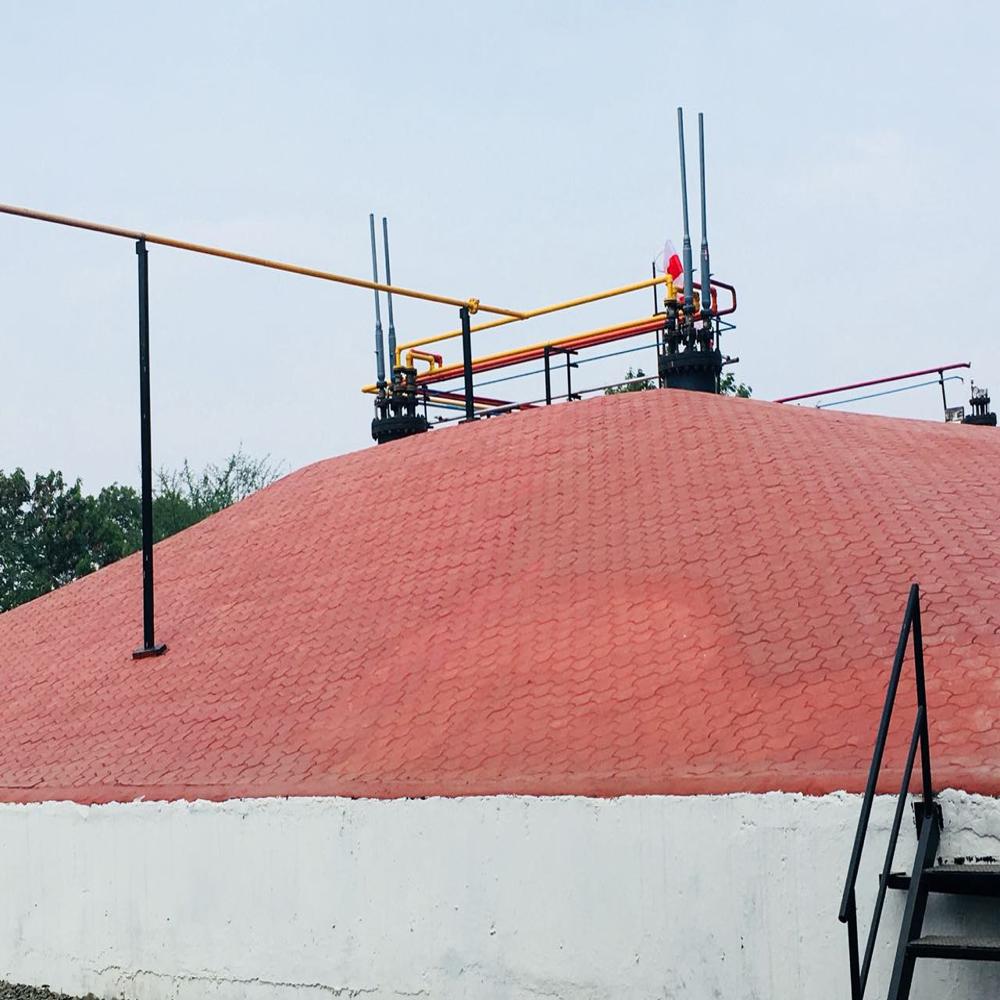

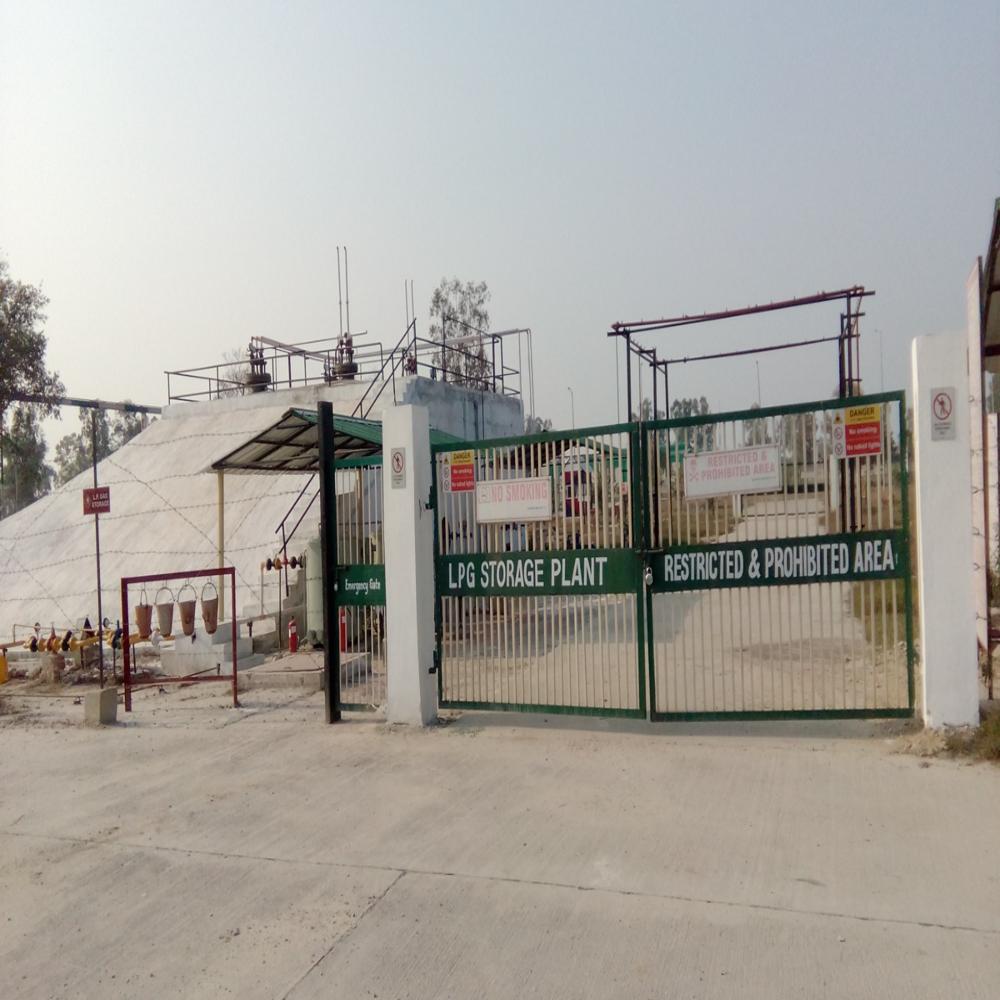

About Mounded Tank Installation

Mounded Tank Installation

We have received wide acclamation among our customers as a manufacturer, exporter and supplier of Mounded Tank Installation. The installed tank are required for proper storage and distribution of chlorine, LPG, ammonia, ethylene oxide, carbon dioxide, propane, nitrogen, oxygen, hydrogen, propylene, ethanol, CNG, bio fuel, argon and sulphur dioxide. Our Mounded Tank Installation involves manufacturing products as per different requirements of clients by continuously upgrading ourselves regarding latest manufacturing technique, thorough quality checking of finished products and their timely delivery.

Key Features:

Properly constructed with all safety guards
Installation with all advanced techniques
Robust structure, Longer service life
Easy in installation

Advanced Surface Protection for Longevity

Each tank receives a high-build epoxy or bituminous coating, safeguarding it from external corrosion. Optional polyurethane foam or mineral wool insulation can also be provided for environments requiring extra protection. This ensures a lifecycle of 1525 years with regular upkeep, making the tanks a durable solution for industrial storage needs.

Engineered to Global and Indian Standards

Our tanks comply strictly with ASME Sec VIII Div 1, PESO guidelines, and IS 2825 standards, ensuring structural integrity and operational safety. Each unit is robustly welded and fabricated from high-grade steel for reliability even under seismic stress and harsh environmental conditions.

Comprehensive Accessories and Safety Features

Every installation includes critical safety and monitoring accessories such as pressure and safety relief valves, level indicators, manholes, and fire protection systems. Leak detection and optional firewater spray/foam rings are offered, making the system ideal for high-risk environments. Tailored configurations and custom outlets further optimize usage.

FAQs of Mounded Tank Installation:

Q: How is the anti-corrosion surface treatment applied to mounded tanks?

A: The tanks are externally coated with high-build bituminous or epoxy materials, which are selected based on environmental exposure and customer requirements. This process provides durable corrosion resistance, extending the service life of the tank even when installed underground.

Q: What testing procedures are performed prior to delivering the tank?

A: All tanks undergo rigorous hydrostatic and pneumatic pressure testing according to ASME Sec VIII Div 1 and Indian Standard IS 2825. These tests verify the structural integrity and leak-tightness of the tank before it is transported for installation, ensuring safety and reliability.

Q: When should insulation be requested for a mounded tank installation?

A: Insulation, using polyurethane foam or mineral wool, is recommended for applications needing temperature stabilitysuch as locations with extreme climate variations or for specific process requirements. Insulation can be added based on operational demands or regulatory standards.

Q: Where can these mounded tanks be installed?

A: These tanks are suitable for both underground (buried/mounded) and above-ground installations. Their robust design allows them to be safely installed at industrial sites, bottling plants, oil & gas facilities, refineries, and other locations requiring large-scale liquefied gas storage.

Q: What benefits do mounded tanks offer over conventional above-ground tanks?

A: Mounded tanks provide enhanced safety against fire and physical damage due to their partial or full burial, as well as superior corrosion resistance from specialized coatings. This results in lower maintenance requirements and greater protection for stored gases.

Q: How are safety and compliance ensured during tank installation and operation?

A: Our tanks come equipped with essential safety devicespressure relief valves, level indicators, and fire protection systemsand are manufactured in accordance with leading international and Indian standards. Seismic design and leak detection further mitigate operational risks.

Q: What liquefied gases can be safely stored in these tanks?

A: These tanks are engineered to store a variety of liquefied gases, including LPG, propane, butane, ammonia, and others used in industrial bottling, oil and gas distribution, and refineries. Material and construction methods are specifically chosen to accommodate these applications safely.
